INTRODUCTION:

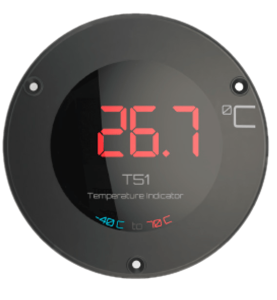

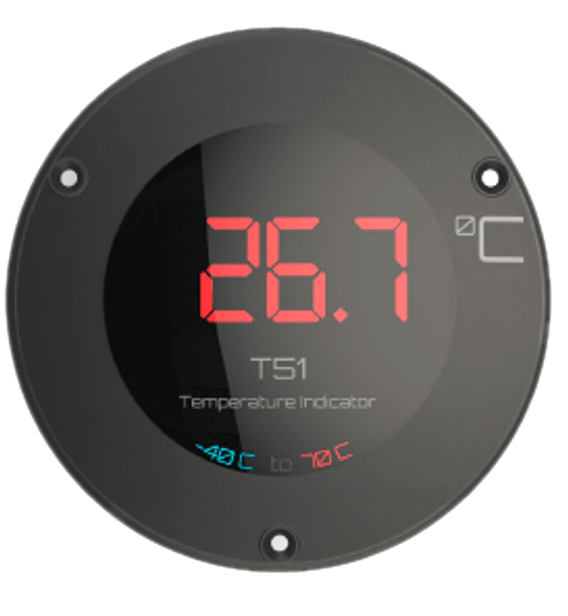

The T51 4' Dial Temperature Indicator from Manik is a precision digital display device designed for accurate temperature monitoring in cold storage and industrial refrigeration systems. Featuring a large, easy-to-read LED display with a stainless-steel bezel, it provides real-time temperature readings down to
sub-zero levels. With its robust design and clear visibility, the T51 is ideal for harsh environments where reliable temperature indication is critical.
SPECIFICATIONS:
| Product Name: | Dial Type Temperature Indicator. |
| Part Number: | T51 |
| Power: | 1Ø, 230VAC±5% Tolerance 50Hz / 60Hz |
| Temperature Sensor type: | NTC 10K |
| Temperature Sensor Probe length: | 5Mtr PVC Coated CU Cable, Insertion tube Length = 25 MM, Diameter = 6.0 MM |
| Temperature measurement Range: | -40°C to +70 °C |
| Sensor Accuracy: | 2%. |
| Accuracy: | 00.1°C / 00.1°F |
| LED Display Color: | RED |
| LED Display Size: | 3 Digit, 1' |
| Cutout Dimensions: | 100 MM Diameter |
| Mounting: | Front Screw Mounting. |
| Enclosure: | Round – IP55 |
